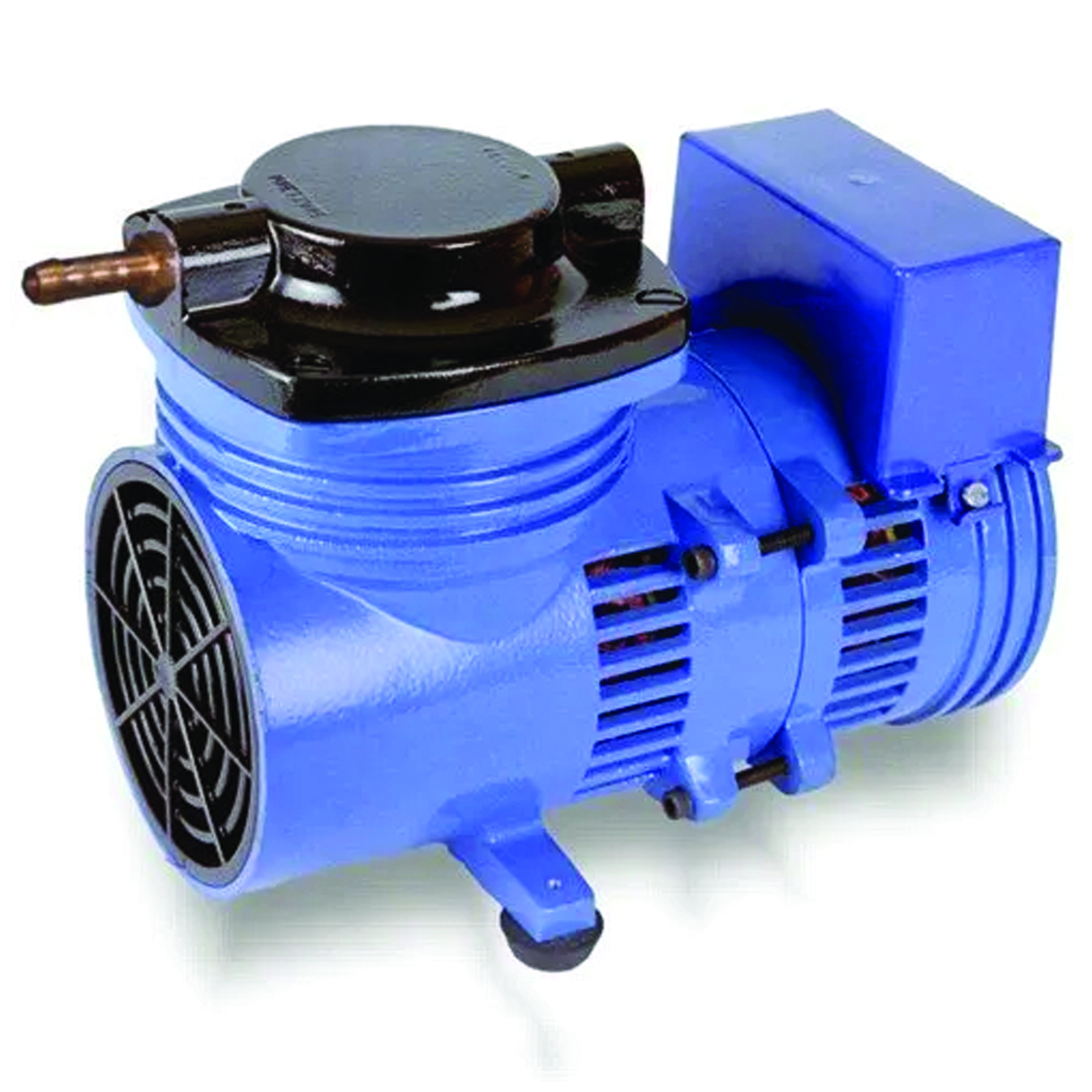

Vacuum Pump LAB-25-S – Subra Scientific Company

We have gained recognition as an eminent enterprise, devotedly engaged in offering a broad range of Oil Free Vacuum Pump. Using quality approved material with the assistance of modern techniques, this pump is manufactured under the strict guidance of deft workforce at our well-established production unit. In addition to this, we provide our entire range in various specifications, in order to fulfill the varied requirements of our clients.

Applications: Pollution Monitoring Equipment, Chemical Analyzers, Laminating press, Material Handling Equipment, Labeling Machines, Plastic Welding Machines, Gas Welding Machines, Soldering iron, Agitation of Chemicals in Tanks, Aeration.

MODEL	MAX. FLOW (Ltrs/min)	MAX. VACUUM (In./mm Hg)	MAX. PRESS. (PSIg)	APPROX. Weight (kg)	MOTOR HP	APPROX Dimensions (mm)
LAB-15	15	22″ (554)	25	3.0	1/20	175X110X150
LAB-25-S	15	27″ (680)	35	5.5	1/16	220X110X150
LAB-25-P	25	22″ (554)	25	5.5	1/16	220X110X150
LAB-25-AX	15	27″ (680)	–	–	1/16	–
LAB-45	45	22″ (554)	35	7.0	1/8	200X125X200
LAB-45-CRP	30	22″ (554)	10	7.0	1/8	220X150X220
LAB-75-S	45	27″ (680)	55	12.5	1/4	300X130X200
LAB-75-P	75	22″ (554)	40	12.5	1/4	300X130X200
LAB-75-CRP	38	22″ (554)	10	–	1/4	–

Heads are made of aluminum alloy castings
Diaphragms are made of neoprene rubber or other elastomers depending on applications.
Specially designed motors in single – phase and three-phase constructions.
Pumps are mounted on rubber pads for silent, vibration-free running.
Due to compact design, these pumps are ideal for laboratories and original equipment manufacturers.
Compact, light-in-weight, hence portable.

Additional information

Model	LAB-25-S
