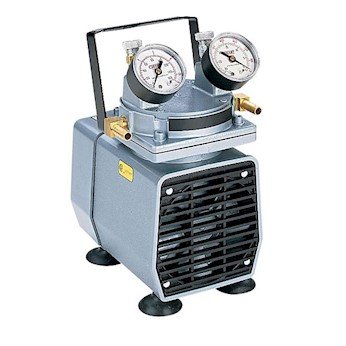

Vacuum Pump

Millivac vacuum pumps are compact, maintenance free pumps that provide a consistent source of vacuum for filtration and other laboratory applications. A patented diaphragm design has reduced the footprint of the pumps compared to conventional models.
Use Millivac Mini Pump to filter water and aqueous solutions. Use Millivac Maxi Pump to filter larger volumes or viscous solutions
Millivac Maxi Pump is gas-tight, has a PTFE-coated diaphragm, and is compatible with slightly aggressive or corrosive gases and vapors.

Materials of Construction Body	Die-cast aluminum
Diaphragm	Neoprene
Seals	SS
Filter Elements	Polyurethane foam
Dimensions Overall Length	20 cm (7.9 in.)
Overall Height	27.5 cm (10.8 in.)
Width	16.5 cm (6.5 in.)
Weight	6.54 kg (14.4 lb.)
Free Air Flow 230 V	472 cm3/s (1.0 cfm) (50 Hz), 613 cm3/s (1.3 cfm) (60 Hz)
Vacuum	61 cm Hg (24 in. Hg)
Pressure	4.2 kg/cm2 (60 psig)
Motor	1⁄8 hp
Current 230 V	1.9 A (50 Hz), 2.2 A (60 Hz)
Vacuum/Pressure Connection	3⁄8 in. hose barb

Shaded-pole, fan-cooled motor has thermal overload switch to protect your pump system
Select vacuum pumps with or without gauges, regulators, and valves
Different pump models have heads in parallel for higher capacity or series for greater vacuum.
