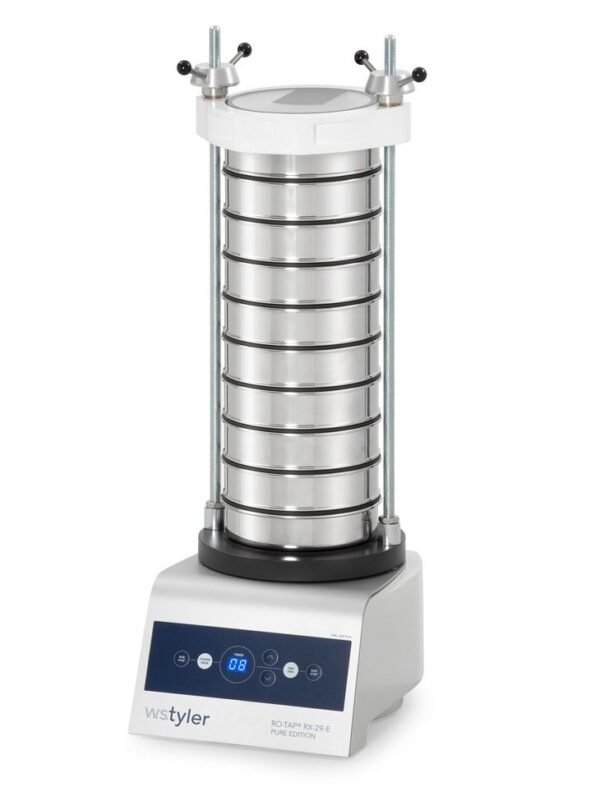

Test Sieves Shaker Model RX-29

The gold standard in test sieve shakers, RO-TAP utilizes a unique two-dimensional operation: a horizontal, circular, and vertical tapping motion. This dual action allows particles to stratify and “seek” critical openings in the test media.
In turn, the most accurate and consistent particle analysis testing is achieved with minimal maintenance.
The RX-29 is designed for use with 8-inch diameter test sieves.

Dimensions 28 x 21 x 25 (71 cm x 54 cm x 64 cm)
Weight 180 lbs. (82kg)
Particle Size Range 4″ to US #635 mesh (20 um)
Test Sieve Compatibility 8″ or 200mm Diameter
Test Sieve Capacity Up to 6 full-height sieves or Up to 13 half-height sieves
Oscillations Per Minute 278 +/- 10
Taps Per Minute 150 +/- 10
Voltage 115v or 230v at 50 or 60 Hz
  • 99-minute digital timer/clock with a tolerance of 0.1 seconds.
  • Requires minimal maintenance
  • Heavy-duty use
  • Each unit is test run and serialized prior to shipment

Additional information

Brand

Model

RX-29
