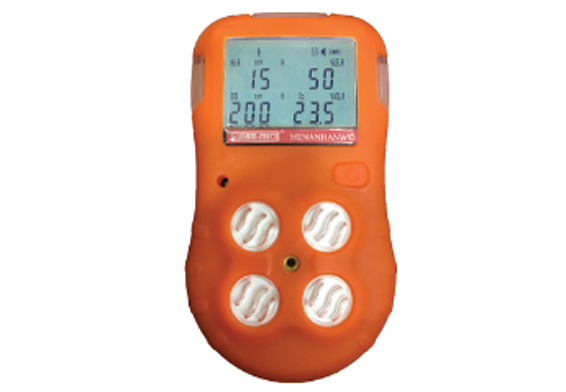

Portable Multi Gas Detector BX-616

Category:

Hanwei BX616 Portable Multi-gas Detector is a device used to detect Oxygen (O2), Carbon monoxide (CO), Hydrogen Sulfide (H2S), and combustible gas Methane (CH4). Which are the four major gases that cause the majority of industrial accidents to protect against disasters caused by oxygen deficiency, toxic gas poisoning, and combustible gas explosions. This Hanwei Multigas Detector helps with the gas level readings on the screen and alerts the user with the alarm when there is a violation in the gas levels.

Applications: Steelworks, petrochemical plants, oil industry, shipbuilding yards, sewage treatment plants, mines, power supply works, confined spaces, etc.

Manufacturer Hanwei
Model No BX616
Measuring Parameters Combustible gas, H2S, CO, O2
Sensor Type Catalytic (LEL), Electrochemical (O2,CO,H2S)
Measuring Type Diffuse Naturally
Response Time T∞<30s
Display LCD Display
Audible ≥80 dB at 1m
Alarm Type Audible, Visual, Vibrating
Operation Life ≥8h per charge (Charging time: 4-6 hrs)
Battery DC 3.7V 1800 mAh Lithium Battery
Operating Temperature Combustible Gases (LEL): -40 °C to 70 °C, Toxic Gases: -20 °C to 50 °C
Operating Humidity <95% RH non-condensing
Housing Rubber Enclosure
Standard Accessories Calibration Cap, Charger, Operation Manual, Screw Driver, USB Cable
Dimensions 128mm x 68mm x 30mm
Weight 120 Grams
  • Small size and light-weight
  • Simple operation with only one button
  • Adjustable alarm levels and span calibration value
  • STEL and TWA alarm for toxic gases
  • Combustible gas sensors are self-protected against high concentrations.
  • Battery low voltage alert
  • Self-test after powering on
  • Self-diagnostic and self-correction function
