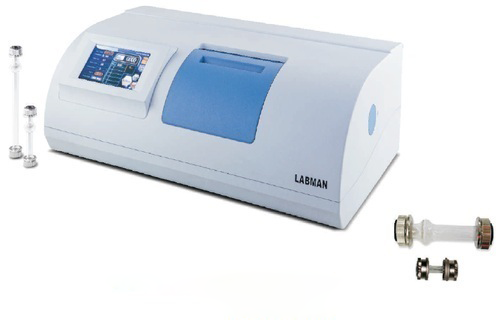

Polarimeter Model ADP90 / ADP45

Model	ADP90	ADP45
No. of Measuring Mode (4)	Optical Rotation, Specific Rotation, Sugar, Concentration
Measuring Mode	Rotation
Measuring range	-90° + 90°	-45° +45°
Unit	Angle°
Resolution	0.001°
Accuracy	±0.004°	±0.01°
Measuring Mode	Sugar
Range	±259°Z	±120°Z
Unit	oz
Resolution	0.001°Z	0. 01°Z
Accuracy	±0.004°Z	±0.02°Z
Measuring Mode	Concentration
Range	0-100g/ml	0- 99.9g/ml
Unit	g/100 ml
Resolution	0.1mg/ml
Accuracy	±0.5g/100ml
Temperature control	Peltier (Built In)	–
Temperature control range	10-50° C	–
Accuracy	±0.1°C & ±0.2°C	–
Constant temp. test tube	100 mm	–
Memory	5000 data sets	–
Display	8″ Colour data matrix Touch Screen
Sample transmittance	> 0.1%	> 1%
Light Source	LED (2.4V, 1W, 5000hours)
Length of Test Tube	100mm & 200mm
Power Supply	Adaptor, Using AC 220V,50/60Hz
Interface	USB Ethernet	USB & RS232C
Dimension (LxWxH) mm	745 X 410 X 295	850 X 470 X 380
Weight	42kg	35kg

Touch screen colour display
Temperature display
Faraday magneto-optical modulator
Polarizer Polarizing film
Digital Polarimeter based on Optical null principle
No warm-up time is required when instrument is switched on
Measuring multiple scales – specific rotation, optical rotation, sugar degree and concentration
Automatic repetition-measurement for 6 times, and calculation of average value.
Measurement of dark-coloured sample
Insulated Sample chamber to keep sample temp. constant
User can set retesting sample between 1 to 6
Photodiode Detector
Data display – date, time, measuring mode, length of tube, temp. test time, measured value (1 – 6 values), average value,
Purity method – saccharic concentration
