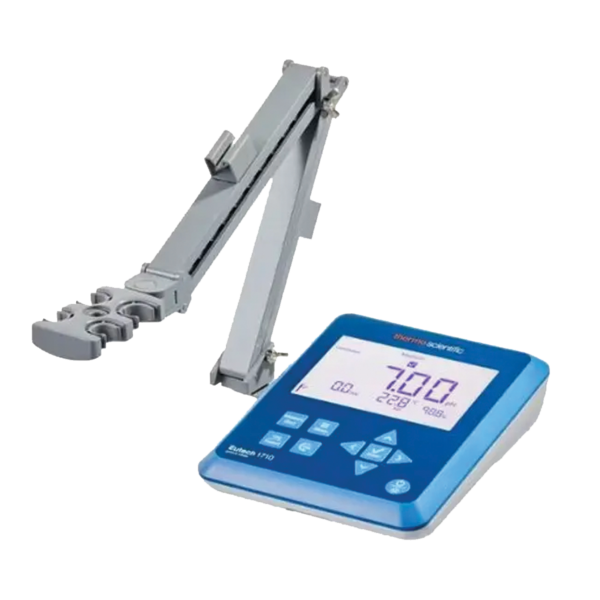

pH/Conductivity Meter 1710/1720

1710 pH/mV Bench Meter:
The large, bright backlit display makes it easy to read and record sample measurements. The meter’s small footprint helps reduce the amount of required bench space. Critical data is automatically saved to the 500-point meter data log and can be exported via the meter’s communication port to a computer or printer. The meter’s non-volatile meter memory preserves settings and data in the event of power loss. On-screen icons indicate measurement stability status to support confidence in your readings. All meters allow for automatic or manual temperature compensation and a one-point offset ATC temperature probe calibration.

Specification 1710 pH/mV Meter
pH Range –2.00 to 18.00 pH
Resolution 0.1, 0.01 pH
Relative accuracy ±0.01 pH ±1 LSD
Calibration points 1 to 5 points
Automatic buffer sets USA (pH 1.68, 4.01, 7.00, 10.01, 12.45), NIST (pH 1.68, 4.01, 6.86, 9.18 ,12.45)
mV/RmV Range ±2000.0 mV
Resolution 0.1 mV
Relative accuracy ±0.2 mV or ±0.05% of reading, whichever is greater
Calibration point 1 point
Specification 1720 Conductivity Meter
Conductivity Range 0.00 µS to 500.0 mS
Resolution 0.01, 0.1, 1 µS; 0.01, 0.1 mS
Relative accuracy ±0.5% reading ±1 LSD
Calibration points 1 to 5 points
Temperature compensation Linear (0 to 10 %/°C) or off
Normalization temperature 15.0, 20.0, 25.0 or 30.0°C
TDS Range 0.00 ppm to 500.0 ppt (TDS factor of 1.00)
Resolution 0.01, 0.1, 1 ppm; 0.01, 0.1 ppt
Relative accuracy ±0.5% reading ±1 LSD
Calibration points 1 to 5 points
TDS factor 0.40 to 1.00
Salinity Range 0.00 to 80.0 ppt
Resolution 0.01, 0.1 ppt
Relative accuracy ±0.5% reading ±1 LSD
Calibration points 1 point

pH/mV Bench Meter:

  • Simultaneously read pH, mV and temperature
  • Measure –2.00 to 18.00 pH, ±2000.0 mV, –5.0 to 105.0°C
  • Perform one- to five-point pH calibrations
  • Calibrate using automatic buffer recognition or manual entry
  • Perform one-point relative mV calibration (RmV)
  • Monitor pH electrode status with the electrode condition icon
  • View pH, RmV and temperature calibration logs with date and time stamps.
  • All data and calibration logs are date and time stamped for GLP/GMP reporting
  • Help facilitate electrode movement into and out of samples with the meter-attached stand



1720 Conductivity Bench Meter:

  • Simultaneously read conductivity, salinity or TDS with temperature measurements
  • Measure 0.00 µS to 500.0 mS conductivity, 0.00 to 80.0 ppt salinity, 0.00 ppm to 500.0 ppt TDS, and –5.0 to 105.0°C
  • Perform one- to five-point conductivity calibrations
  • Calibrate using automatic standard recognition or manual entry
  • Perform one-point salinity and one- to five-point TDS calibrations
  • View conductivity, salinity, TDS and temperature calibration logs with date and time stamps
  • All data logs and calibration logs are date and time stamped for GLP/GMP reporting
  • Help facilitate electrode movement into and out of samples with the meter-attached stand

Additional information

Brand

Product Code

EBPH171000 / EBEC172001

Model

1710/1720
