Nitrogen Gas Generator MP-AES

POR

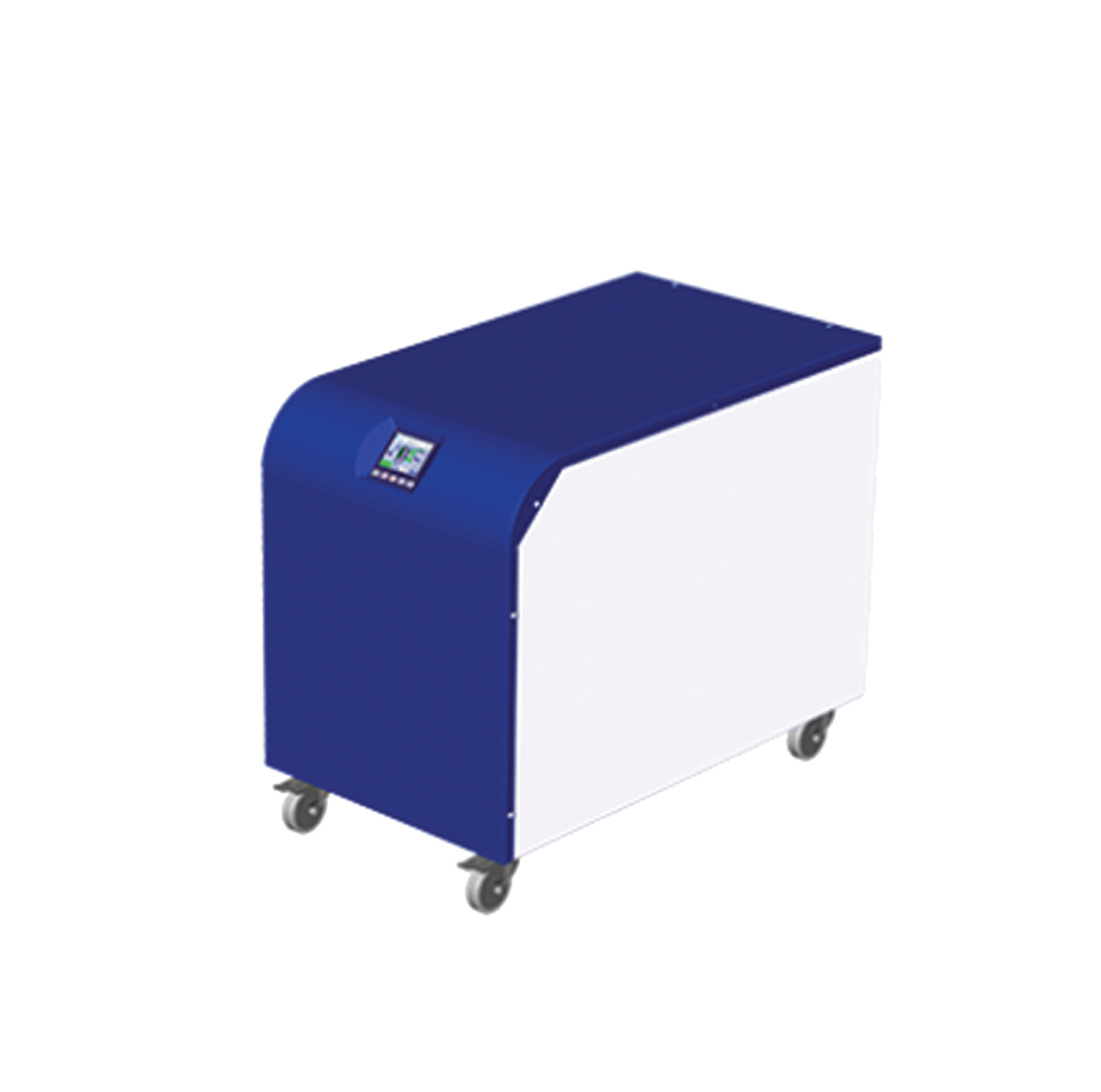

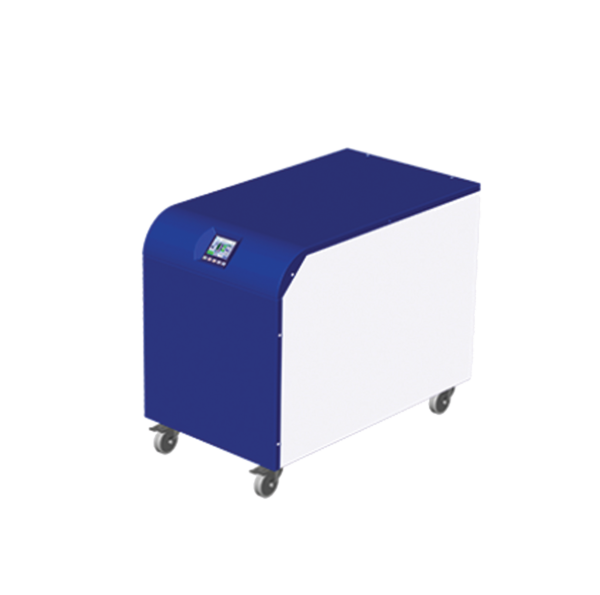

The THEMISTO MP dual flow generator has been specifically designed to meet the Nitrogen for plasma support gas monochromator purge and air supply for POP gas or monochromator air purge for MP-AES instrument.



Gas Nitrogen Air
Max Flow rate 25 L/min 10 L/min 36.5 L/min
Max pressure 6 bar (87 psi) 6 bar (87 psi)
Nitrogen purity > 99.5% 99.95%
Dew Point -20°C (-4°F)
Particles 0.01 μ
Touch screen Touch screen (operating parameters, system status, alarms) with LED indicators (Power on/off; ready or errors)
Built with O2 sensor Yes (to control N2 purity)
Max Relative Humidity 80% RH @ 30°C
Temperature range From 5 – 25°C (41 – 77°F))
Max Altitude 4000 Meters
Noise level @ 1M 60 dB (A)
Dimensions

(W x H x D)

47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs) 155 / 202
Power comsuption 2200 VA
Electrical supply 220 – 240 V ac / 1 ph / 50 – 60 Hz
110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse 10A
Nitrogen/Air outlet 2x 1/4″ GF
USB/PC Control In series
