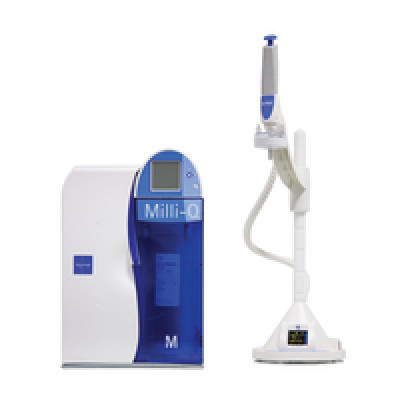

Milli Q Water System

The most integrated ultrapure system producing Milli-Q®& Elix® water quality
Milli-Q® Integral is a unique combination of optimized water purification and monitoring technologies. It allows, in a single device, both pure (Type 2) and ultrapure (Type 1) water to be produced directly from potable water.

This all-in-one concept offers several benefits:
• Provides users with complete control over all water purification steps and the final water quality.
• Allows installation of a comprehensive water purification chain in a minimal amount of space.
• Eliminates the constraints of centralized water stations and their distribution loops (complexity, heavy maintenance, prolonged downtime, contamination).

Milli-Q® Integral ultrapure water (Type 1)

Resistivity at 25 °C1 18.2 MΩ•cm
TOC2 ≤ 5 ppb
Particulates (size > 0.22 μm)3 < 1 particulate/mL
Bacteria3,4 < 0.01 CFU/mL
Pyrogens (endotoxins)4 < 0.001 EU/mL
RNases4 < 1 pg/mL
DNases4 < 5 pg/mL
Flow Rate Up to 2 L/min

Milli-Q® Integral pure water (Type 2)

Resistivity at 25 °C1 Typically, 10-15 MΩ•cm
TOC < 30 ppb
Production flow Rate 3 L/h (Milli-Q® Integral 3)

5 L/h (Milli-Q® Integral 5)

10 L/h (Milli-Q® Integral 10)

15 L/h (Milli-Q® Integral 15)

Particulates (size > 0.22 µm)2 < 1 particulate/mL
Bacteria2,3 < 0.1 CFU/mL
Pyrogens (endotoxins)3 < 0.001 EU/mL
RNases3 < 0.01 ng/mL
DNases3 < 4 pg/µL
Flow Rate Up to 2 L/min
  • Purified water passes through a long-life dual wavelength UV lamp
  • The Quantum® polishing cartridge then removes the remaining ionic and organic contaminants
  • Ultrapure water free of particulates, bacteria, pyrogens, nucleases, proteases, VOCs, endocrine disruptors and organics for LC.
  • Accurate A10® TOC monitor
  • High-sensitivity resistivity cells
