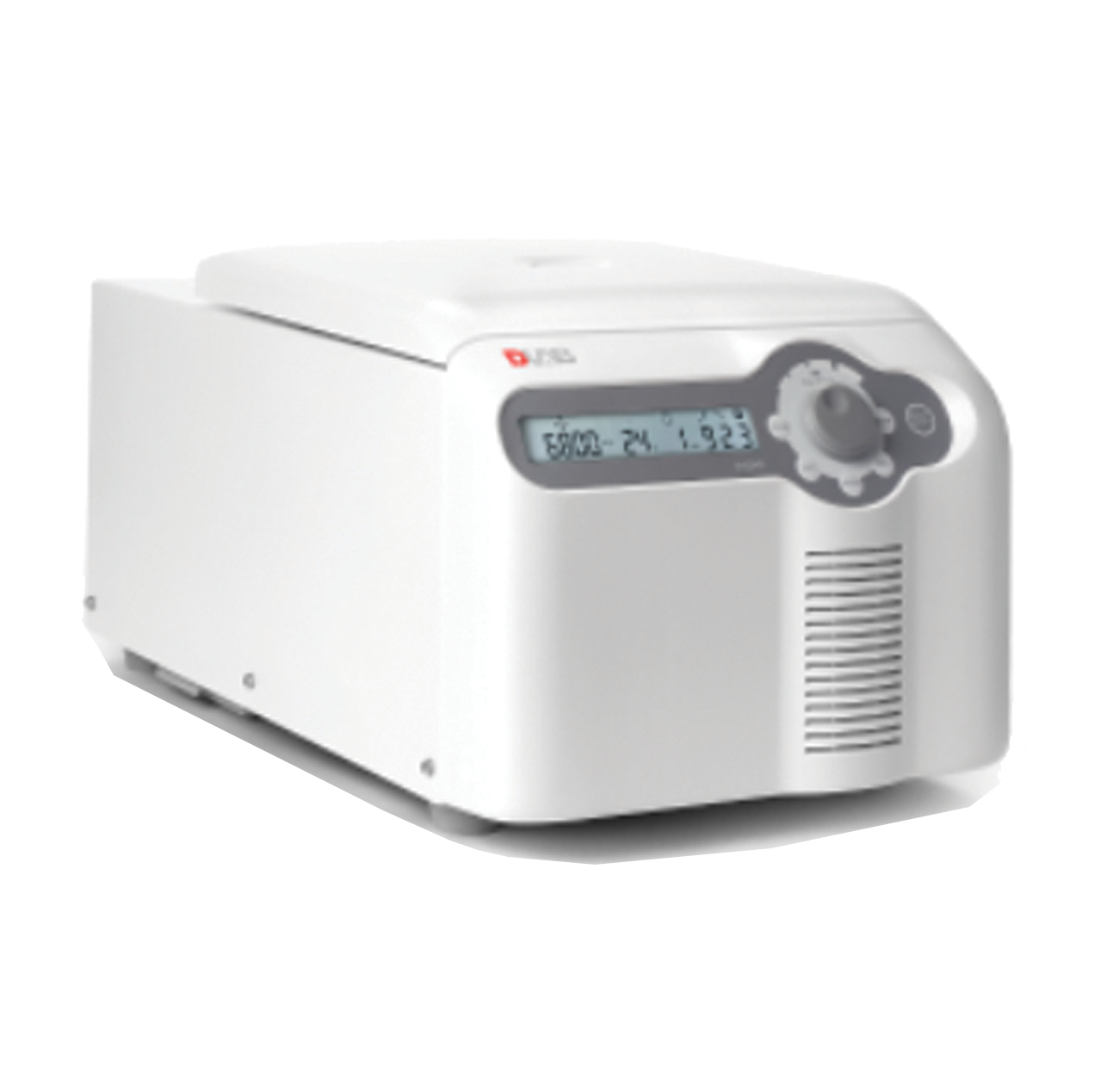

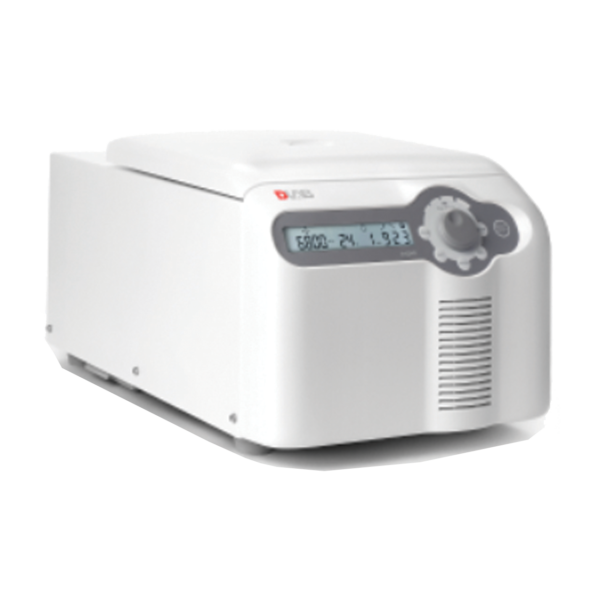

Micro Centrifuge D1524R

High Speed Micro centrifuge is ideal for biochemical and chemical analysis of microsamples, sedimentation of biological components, etc. Special multi-flow air cooling design with patent ensures fast cooling of the rotor and low energy consumption. Speed can be set from 200 rpm to a max. of 15000 rpm/21380xg. Speed accuracy: ±10 rpm. Unique temperature display, appropriate for gentle handling of sensitive samples. Bio-safe rotor/anti-sample overflow prevents accidental leakage in centrifugal process allowing risk-free microbial contamination. Pre-cooling system, the compressor will cool automatically as soon as the set temperature is lower than the room temperature.

Speed Range 200-15,000 RPM with 100 RPM increment
Max RCF 21380×g, step: 10 xg
Max. Capacity Temperature Setting: -20℃ to 40℃ 1.5/2mL x 24, 0.2/0.5mL x 36, PCR-8 Strips x 4, 5mL x 12, 5mL x18
Run Time 30sec-99min, Continuous
Driving Motor Brushless DC Motor
Safety Device Dural door lock; overspeed detection; over-temperature detection
Acceleration/Deceleration 25s | 25s
Power Requirement 500W,110V/220VAC, 50/60Hz
Noise Level ≤ 56dB
Equipment Dimension 332 x 553 x 283 mm
Equipment Weight 30 Kg
  • Electronic Magnetic door locking system – the lid can be closed with one hand soft touch
  • Precooling, the compressor automatically starts cooling as long as the set temperature is lower than the ambient temperature
  • Sound indicator at the end of running.
  • Temperature range -20℃ to 40℃
  • Short pre-cooling time of only 7minutes from room temperature to 4℃
  • Up to 9 program storage capacity
  • 3-layer sealed rotors ensure safe configuration
  • High-strength aluminum alloy rotor can be fully autoclavable at 121℃
  • Rotor imbalance detection alarm
  • Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation
  • Safety Performance: dual door lock, over-speed detection, over-temperature detection with internal diagnosis system
  • Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
  • An external condensation tank prevents water accumulation within centrifuge chamber
  • 3-year warranty

Additional information

Brand

Model

D1524R
