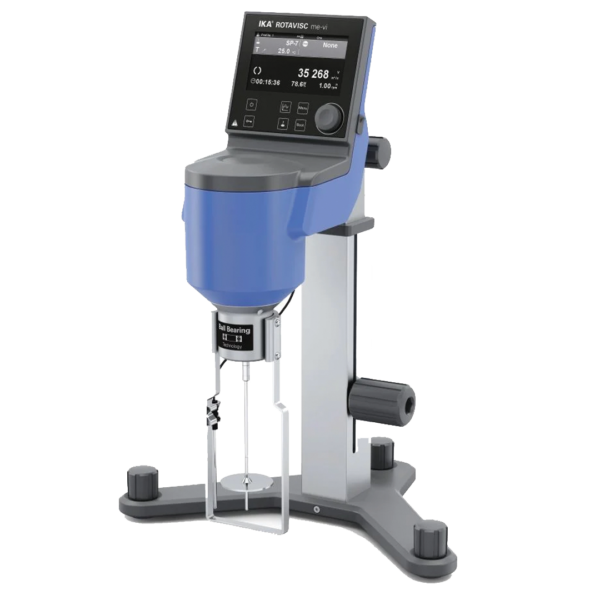

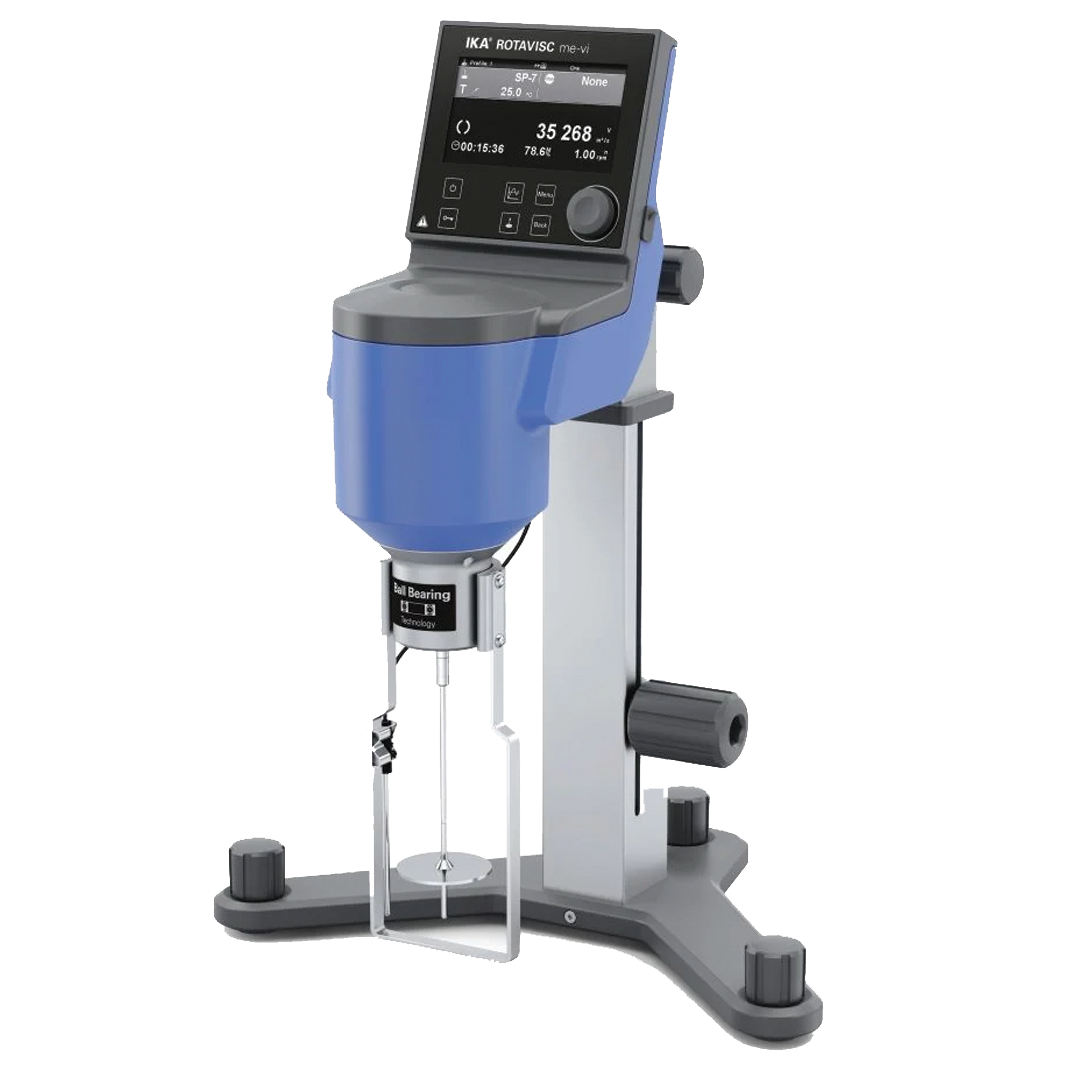

IKA Viscometer ME-VI

The ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement – the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set ( SP7- SP12), a protective bracket, temperature sensor and ROTASTAND stand.

Easy to operate

The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.

Highest measurement accuracy

The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.

Stepless speed

ROTAVISC is a viscometer, which offers stepless speed adjustment.

IKA ROTAVISC me-vi Complete

Viscosity measuring range: 100 – 40.000.000 mPas.

Viscosity Measuring Range 40000000 mPas
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatability (FSR) 0.2 %
Spring Torque 0.7187 mNm
Guard Rail me-vi
Measuring Spindle Series SP set-2
Motor Rating Output 4.8 W
Overload Protection yes
Direction of Rotation Right
Display TFT
Speed Display TFT
Speed Range 0.01 – 200 rpm
Setting Accuracy Speed ±0.01 rpm
Speed adjustment TFT
Torque display Yes
Torque Measurement Yes
Timer Yes
Time setting range 0.017 – 6000 min
Temperature measurement resolution 0.1 K
Working Temperature Display TFT
Connection for Ext. Temperature Sensor PT 100
Graph Function Yes
Operating Mode Timer and Continuous Operation
Calibration option Yes
Touch Function Yes
Permitted density 9999 kg/dm3
Working temperature -100 – 300 °C
Fastening on stand extension arm
Support rod diameter (with integrated fastening on stand) 16 mm
Telescope Stand Stroke 200 mm
Plug-in Coupling (Ø) 12 mm
Basic Container Volume 600 ml
Stand Rota Stand
Stroke max. 61 mm
Diameter 16 mm
Dynamic load 5 kg
Dimensions (W x H x D) 351 x 629 x 372 mm
Weight 7.1 kg
Permissible Ambient Temperature 5 – 40 °C
Permissible Relative Humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS 232 Interface Yes
USB interface MiUSUSB-B-Cro USUSB-B-USB-B
Voltage 100 – 240 V
Frequency 50/60 Hz
Power input 24 W
Power input standby 0.06 W
DC Voltage 24 V=
Current Consumption 1000 mA
  • Easy to Operate
  • Highest Measurement Accuracy
  • Stepless speed
  • IKA ROTAVISC me-vi Complete

Additional information

Brand

Model

ME-VI
