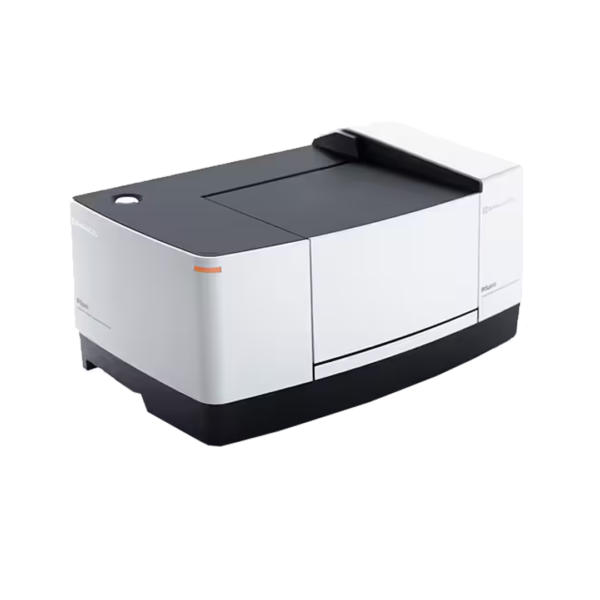

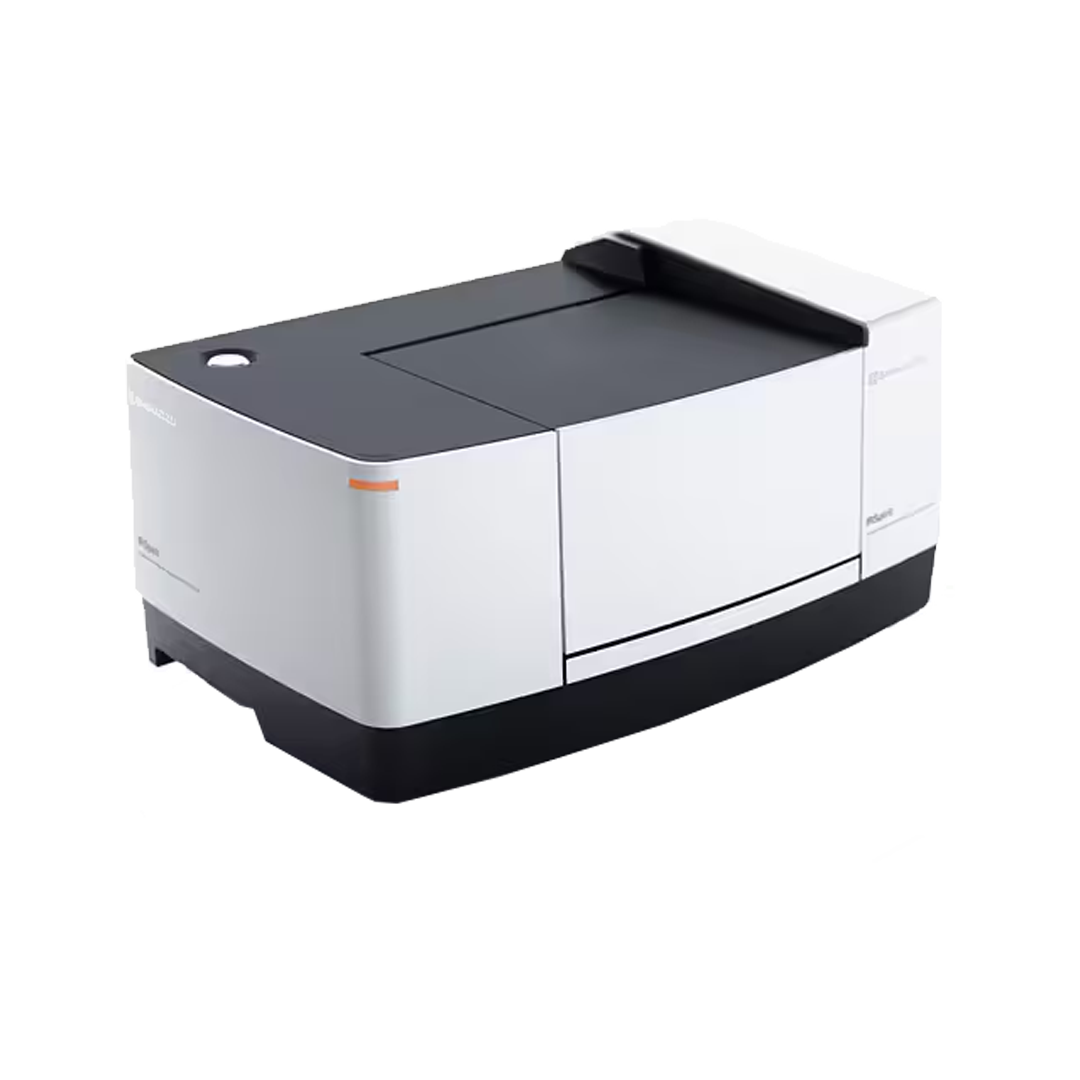

FTIR Spectrometer IR Spirit

IRSpirit instruments come with IR Pilot software, which offers 23 application programs without the need for parameter setup. Measure multiple samples with just a few clicks.You can   choose from the highly sensitive IRSpirit-TX, the affordable IRSpirit-LX, and the highly reliable IRSpirit ZX with its moisture-resistant design.

It gracefully accommodates available bench space and the sample compartment is easily accessible with the system facing forward or sideways. In addition, IRSpirit is equipped with the widest sample compartment in its class, to easily accommodate both Shimadzu and third-party accessories. IRSpirit also offers the highest S/N ratio (30,000:1*1) in its class using the technology inherited from the high-end model.

Interferometer Michelson interferometer (30° incident angle)

Equipped with Dynamic Alignment system

Sealed interferometer

Optional Extended Wavenumber Range 11,500 to 375 cm-1, 6,000 to 220 cm-1, 6,000 to 50 cm-1
Beam splitter Germanium-coated KBr
Light source High-energy ceramic light source
Detector IRSpirit-T model: DLATGS detector with temperature control

IRSpirit-L model: LiTaO3 detector

Wavenumber range 7,800 to 350 cm-1
Resolution 0.9, 2, 4, 8, 16 cm-1
Dimensions 390 (W) x 250 (D) x 210 (H) mm
Weight 8.5 kg
Optical system Single-beam optics
Sample compartment Equipped with automatic accessory recognition mechanism 200(W) × 140(D) × 100(H) mm

Center focus

  • Space-Saving, Expandable
  • FTIR Made Easier
  • Reliability to Deploy with Confidence
  • Simple Operation, Confident Results
