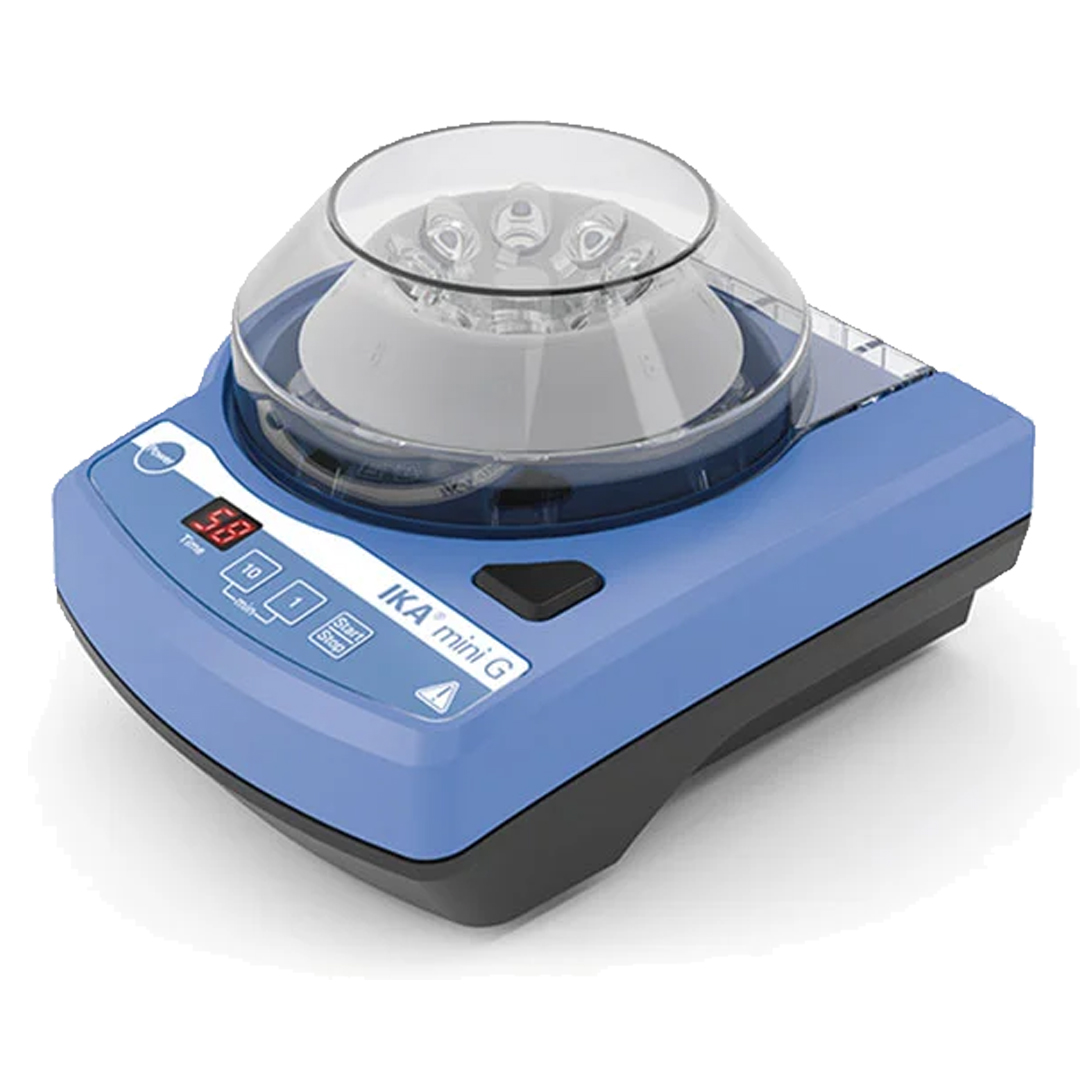

Centrifuge mini G

Mini-centrifuge for all applications which do not require high speeds, e.g. micro-filtrations and cell separation. Transparent cover allows constant observation of centrifuge. The mini-centrifuge can be used for both PCR-vessels and PCR-strips. As a safety feature, the centrifuge will run only when the lid is closed. Lid opens easily with the press of a button.

Capacity 8 × 1.5 / 2.0 ml
Speed 6000 rpm
Speed deviation 5 %
Centrifugal acceleration 2000 G
Timer Yes
Timer display 7 Segment LED
Unbalance sensor No
Quick stop Yes
Cover opening Automatic
Rotor exchange Without tool
Protective cover Yes
Interface
GENERAL DATA
Weight 1.4 kg
Dimensions (W × H × D) 155 × 105 × 175 mm
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
Voltage 220 – 230 V
Frequency 50/60 Hz
Motor rating input 12 W
Power input 12 W
  • Fixed speed of 6000 rpm
  • Digital timer adjustable from 1 to 99 mins
  • Integrated quick stop
  • Fast startup of speed
  • Compact design and quiet operation
  • Rotor exchangeable without tools
  • Easy operation with touch keypad

Additional information

Brand

Model

mini G
