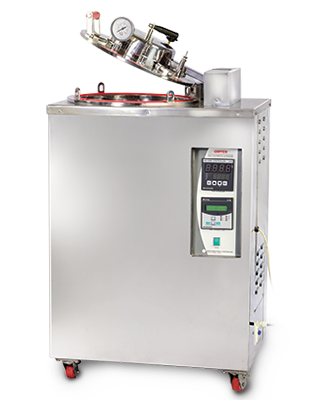

Autoclave Single Lever Lock Model

Fully Automatic Autoclave – most useful to sterilizer Lab glassware, Plastic Tubing, Liquid in sealed glass containers and many more uses.
Fully Argon welded to avoid steam and pressure leak.
Double walled in construction with Inner SS 304 Matt/Buff or Mirror finish.
A Special Box Type Outer GI / SS 304 body is provided with state of art control panel to avoid direct heated contact with main Jackett and double walled body of autoclave.
A unique single lever lock ensures easy lifting & closure of Autoclave door without leakage of Vacuum & Pressure.
The Temp. is being controlled by Microprocessor based PID Temp. Controller with Dual Digital Indicator and PT – 100 sensor
The cycle begins with press of a start Switch for fully automatic operation.
Automatic steam and air exhaust at end of cycle.
Specially designed heaters reduce power consumption.
Removable SS wire mesh/rod carrier supported on footed, SS frame in-built.
Water low level Alarm indication and heater cutt off facility.
Lid is equipped with pressure gauge range 0 to 20 PSI, safety valve and exhaust valve.
Safety valve, Steam release Exhaust Valve, Vacuum breaker – for more safety.
Temperature Range: upto 1210oC. Temperature Accuracy: ± 1°C. Pressure Range: 0 to 20 PSI.
